We offer substation control solutions for both centralized and decentralized traction power systems at medium and high voltage levels—ranging from simple 15 kV switchgear stations to complex substations with double busbars and multiple longitudinal isolators at the 110 kV level. The substation bus, based on IEC 61850, forms the highly available functional foundation of the entire system.
Through the complete secondary equipment of 50 Hz to 16.7 Hz converter stations, we have built up extensive expertise. This ranges from the integration of busbar protection systems at both frequency levels to the protection of the converters, which we integrate into our control system. The visualization and control of operating points for the various operating modes of the converters, the recording and evaluation of characteristic curves, and the logical input of setpoints round out our solution.
With the option to implement the gateways and visualization redundantly in a hot-standby configuration, we provide a highly available overall system.
Rotating machines are experiencing a renaissance in grid stabilization. This applies to both 50 Hz grids and 16.7 Hz traction power grids. OHB Teledata has built up expertise in equipping generation and converter plants based on IEC 61850 technology. All new plants are integrated with high availability via the proven bus system. This ensures that standard technology
Today, we need more than just the function of station control technology alone. For critical infrastructure operators, it is vital that the functionality itself be protected through adequate measures. The measures derived from various international standards (IO27001, IEC62443) and numerous comprehensive industry standards (e.g. BDEW-Whitepaper) need a sophisticated solution to meet the necessary requirements in the context of IT and OT security. A good solution consists of interrelated mechanisms which, despite their complexity, are easy to handle. This approach takes centre stage in the solution we have developed, creating an environment based on standard technology that can be expanded in stages:
- Hardening and configuration based on the Center for Internet Security (CIS)
- Use of CIS controls for secure system configuration
- Protection against unauthorised access and defence against denial-of-service attacks
- User/role management and secure authentication
- Integration of external components into the secure environment
COMMUNICATIONS TECHNOLOGY
Encrypted communication using cryptographic methods requires measures that go beyond the actual communication technology. With our cyberOHBguard series, we ensure that connections to control centers via the IEC 60870-5-104 protocol are secured by the application-layer firewall. In addition, this solution offers the option of deploying the genua firewall, which is certified by the German Federal Office for Information Security (BSI). The cryptOHBguard® hardware is also BSI-certified, which significantly enhances basic protection. We offer:
- Centralized management of all security components
- Logging of all relevant events
- Centralized update management
- Authentication and user/role management
- Anomaly detection and automatic shutdown
ALTERNATIVE RADIO ROUTE
To ensure operational continuity in the event of a communication failure, we offer a backup radio link. This increases system availability and enables stations to be connected to control centers quickly, flexibly, and even on a temporary basis. In addition, we provide a robust remote maintenance solution, backed by the high-quality components of our cyberOHBguard series.
SECURE OHB C³ – THE HIGHLY SECURE COMMUNICATION SOLUTION FOR CRITICAL INFRASTRUCTURES

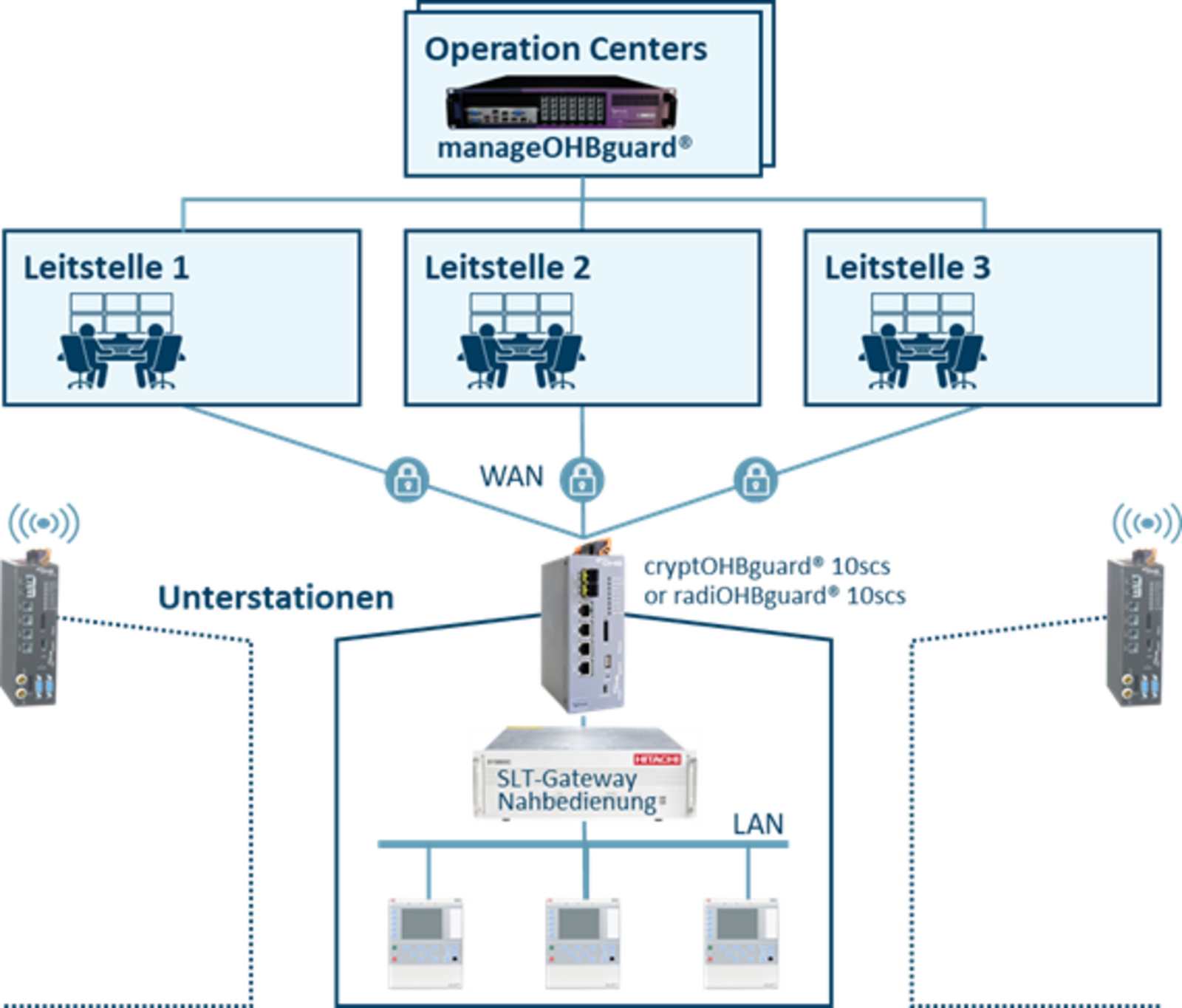

OHB Teledata’s Secure OHB C³ (Control Center Connector) is a highly secure communication solution designed specifically for the reliable exchange of data between central control centers and decentralized components in critical infrastructure.
Maximum security through encryption
The Control Center Connector (C³) supports the standardized IEC 60870-5-104 protocol and ensures tamper-proof, encrypted transmission of control and sensor data up to Layer 7 of the ISO-OSI layer model. As a result, it reliably protects critical infrastructure from cyberattacks and unauthorized access.
Easy retrofitting into existing systems
A major advantage of the C³ is its seamless integration into existing infrastructures—without requiring any adjustments to the communication endpoints. It acts as a substation for the central office and as a substation for the central office. This prevents direct TCP connections and enhances the security of the entire communication structure.
Secure wireless data transmission with the radiOHBguard 10scs
By integrating a radio module for 1800/1900 MHz and 450 MHz, data can also be transmitted to the control center via alternative communication channels—ideal for locations without a fixed or stable network connection. In collaboration with 450connect, the C³ enables secure communication over the fail-safe 450 MHz network, which is specifically available to critical infrastructure. Optional data switch that allows the data flow to be transmitted via radio communication as an alternative.
Flexibility and interoperability
- Automatic verification of the protocol components of the IEC 104 protocol for fault detection and alarm signaling
- Replication of IEC 60870-5-104 connections to enable seamless migration of control centers
- Flexible filtering options to reduce data volumes and control command directions
- Protocol conversion from IEC 60870-5-101 (serial) to IEC 60870-5-104 (TCP/IP) for connecting serial interfaces
- Restriction of type identifiers approved by the operator and defined in the interoperability listFlexibility and interoperability
Central Administration
Settings, updates, and changes can be rolled out quickly and securely via a central management platform. Thanks to plug-and-play functionality, replacing components is particularly easy. The operating system is based on OpenBSD and offers maximum protection thanks to its BSI certification. A zero-touch rollout concept is available as an option.
Ideal for operators of critical infrastructure
The Secure OHB C³ offers a secure, flexible, and future-proof communication solution for operators of critical infrastructure. With the highest security standards, easy integration, and comprehensive management options, it ensures reliable control and monitoring of sensitive systems.
